Project & Panel Mesh
A50 Project Mesh
- High in strength and durability
- For fencing, partitioning, racks and safety screens
- Suitable for industrial applications
Product Details

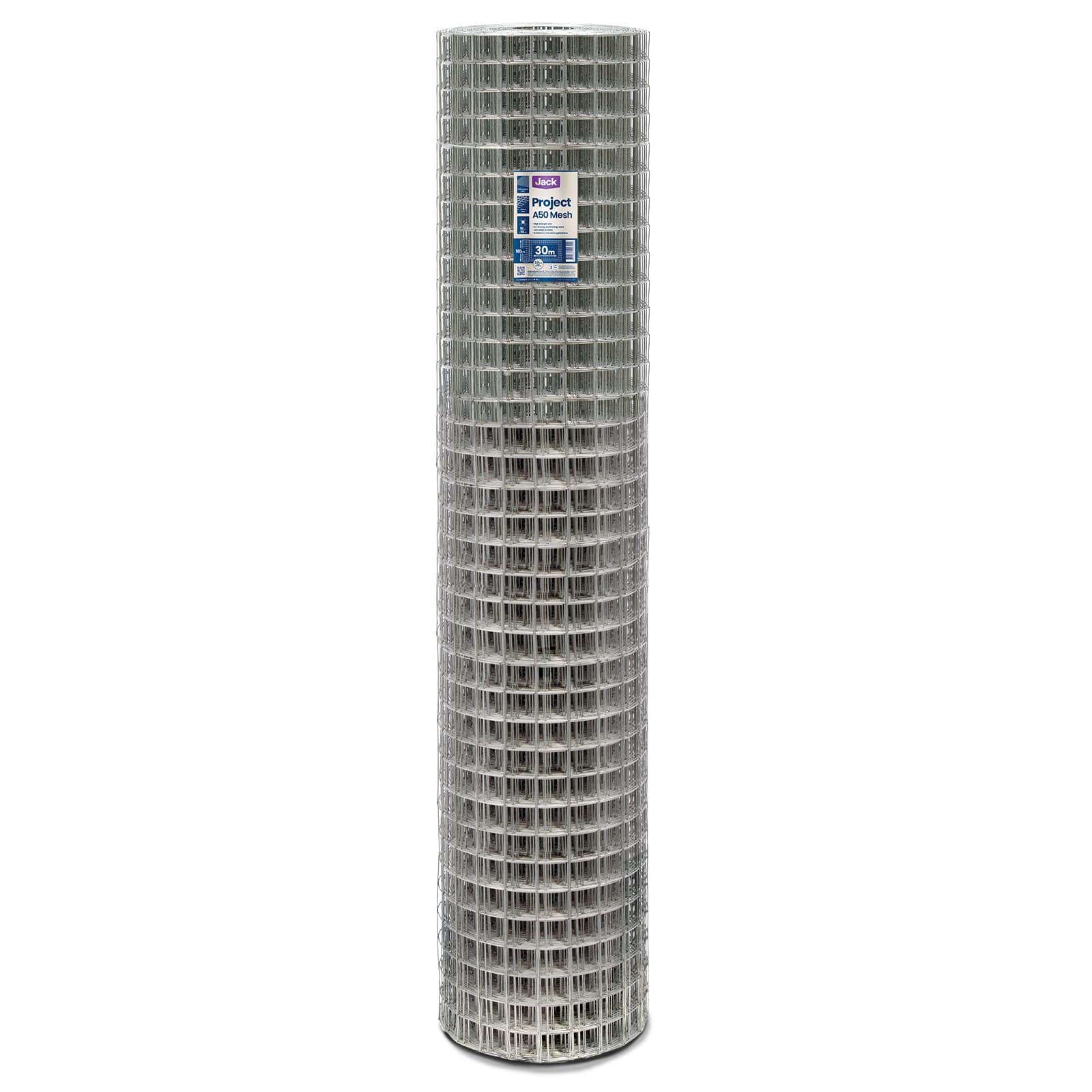

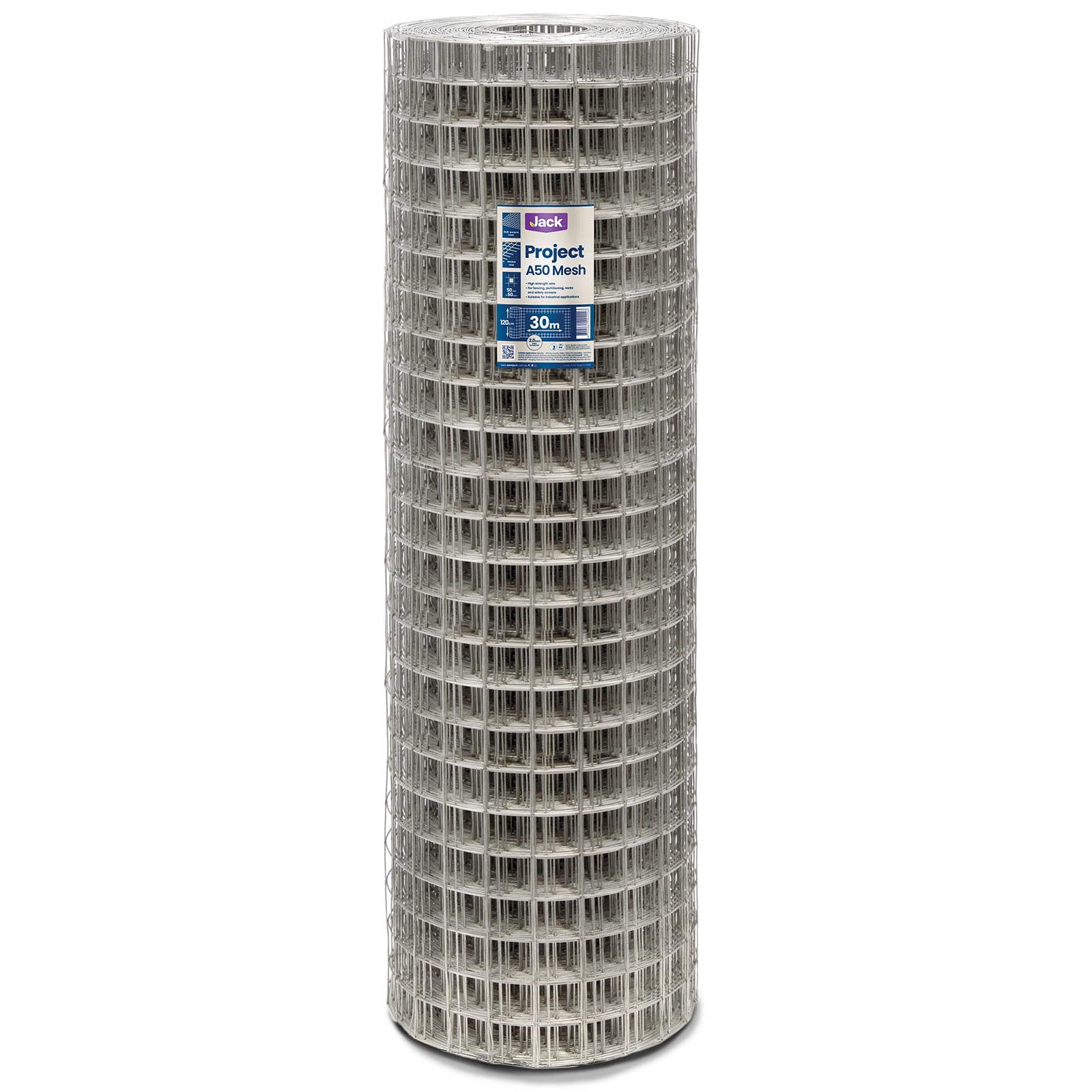

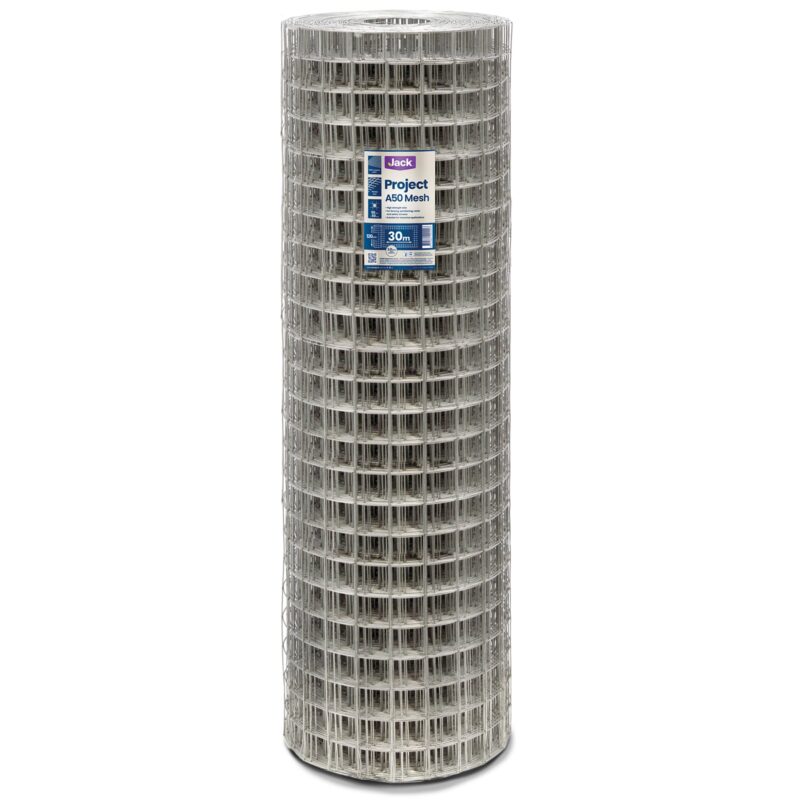

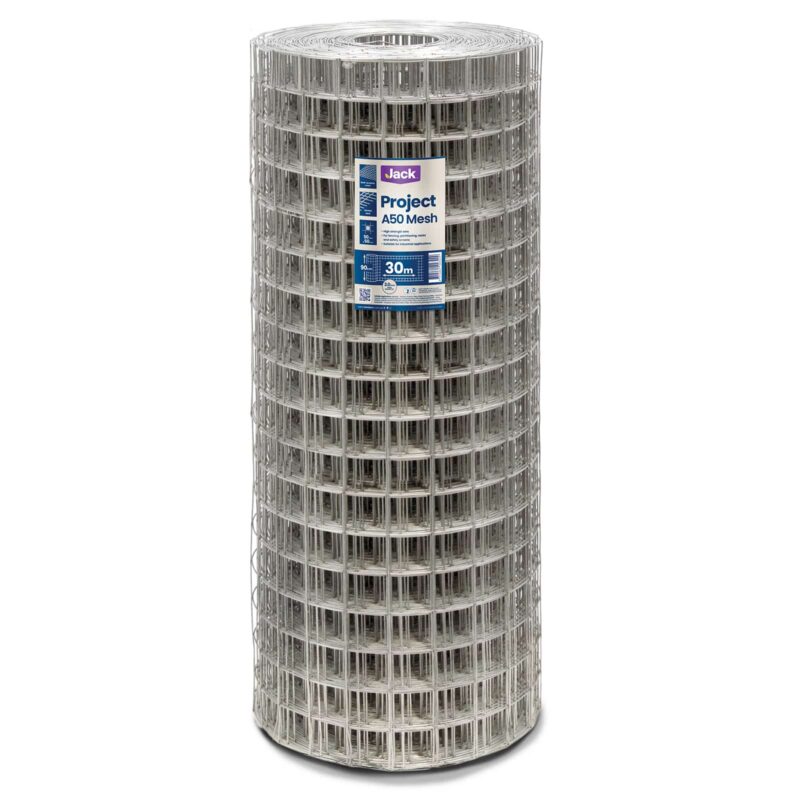

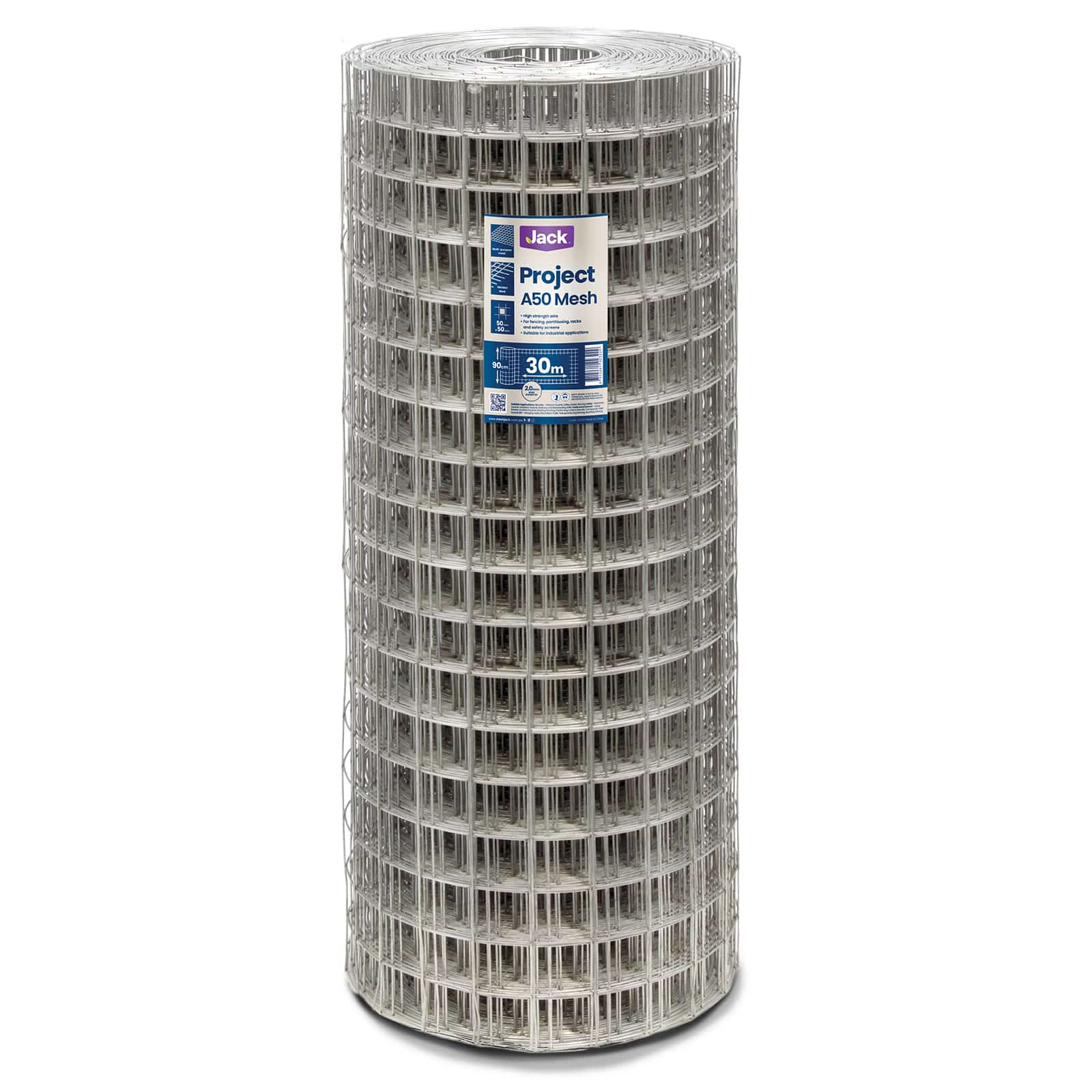

2.00mm Multi-Purpose Galvanised Mesh
Jack A50 Project Mesh is manufactured from 2.00mm galvanised wire and is high in strength and durability. The mesh aperture is 50mm x 50mm using medium tensile wire. Suitable for a wide range of applications, it can be cut to shape using bolt cutters, or bent and fabricated as required. Available in three different heights: 90cm, 120cm and 180cm to suit various projects.
Suitable Applications:
- Security – Window Guards, Grilles, Gates, Fencing
- Safety – Machinery Guards, Ventilator Guards, Stairway and Balustrading infills
- Trade and Industrial – Safety Barriers, Scaffold Guards, Shelving, Racking, Partitioning, Lockers, Security Compounds, Pallet guards
- DIY – Hanging racks, Box trailers, Trellis, Tree guards, Dog fencing, Boundary fencing.
Handy Hints:
- Project Mesh is available in different apertures to suit the design and construction of your project.
- To join Project Mesh sections, use Jack Netting Clips. For heavy duty applications, we recommend Jack Handy Panels.
- Where a painted finish is desired, it can be sprayed or brushed using a recognised metal painting system. Follow the manufacturer’s directions for optimal results.
Specifications
Item | Product Code | Length (m) | Height (cm) | Aperture (mm) | Finish | Wire Diameter (mm) |
---|---|---|---|---|---|---|
A50 Project Mesh | 22622 | 30 | 180 | 50 x 50 | Galvanised | 2 |
A50 Project Mesh | 22422 | 30 | 120 | 50 x 50 | Galvanised | 2 |
A50 Project Mesh | 22322 | 30 | 90 | 50 x 50 | Galvanised | 2 |
