Transform your backyard with Matrix Decor Screens

Transform your backyard with Matrix Decor Screens

A sustainable way to elevate your backyard

Are you ready to take your outdoor space to another level? Transforming your backyard into a stylish haven is possible with Matrix Decor Screens.  These sustainable weather-resistant beauties are perfect for transforming your backyard into a beautiful space you won’t want to leave.

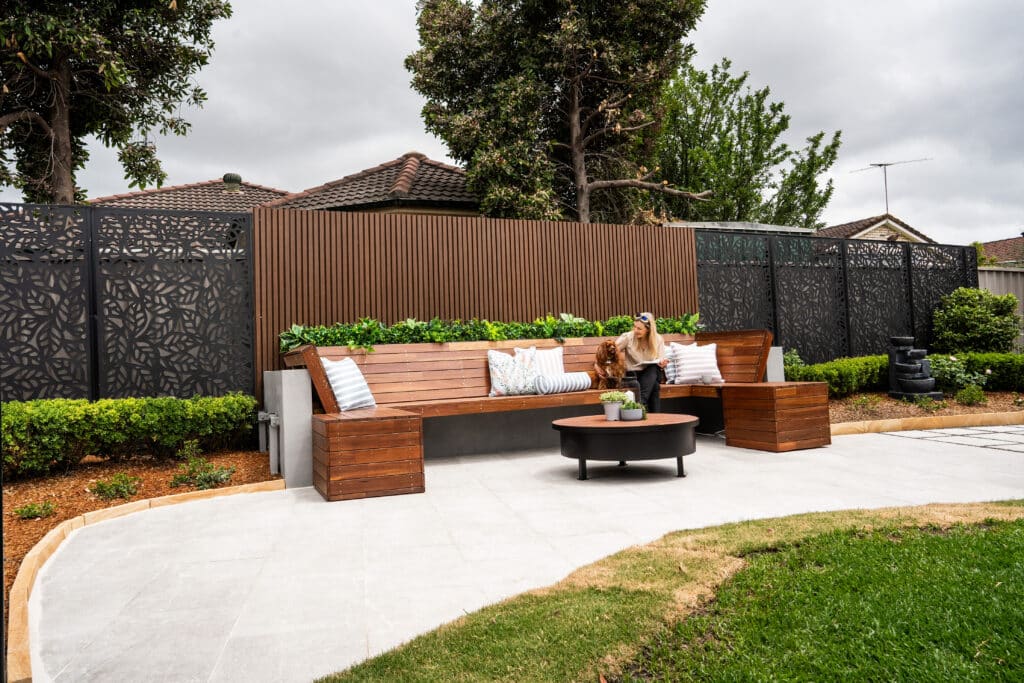

The screens added an architectural flair, by pairing them with some wooden paneling, seating and paving to transform this once simple backyard into an entertainer’s retreat.

What you'll need

Tools & Materials

3330 Matrix Decor Screen Bird of Paradise Charcoal
Matrix Bird of Paradise Frameless Decor Screen View Product
33515 Jack Matrix Upright Sceen Kit 50x50mm high Charcoal
Matrix Screen Upright Post View Product
Jack Matrix support post 3.1m
Matrix Support Post with cap View Product

Additional materials needed for this project:

  • Concrete (In-ground application)
  • Hammer drill (On-ground application)
  • Dynabolts (On-ground application)
  • Impact driver or drill
  • Measuring tape
  • Angle Grinder (for advanced installations)
  • Safety gloves and goggles

Your step-by-step guide

  1. In-ground Installation

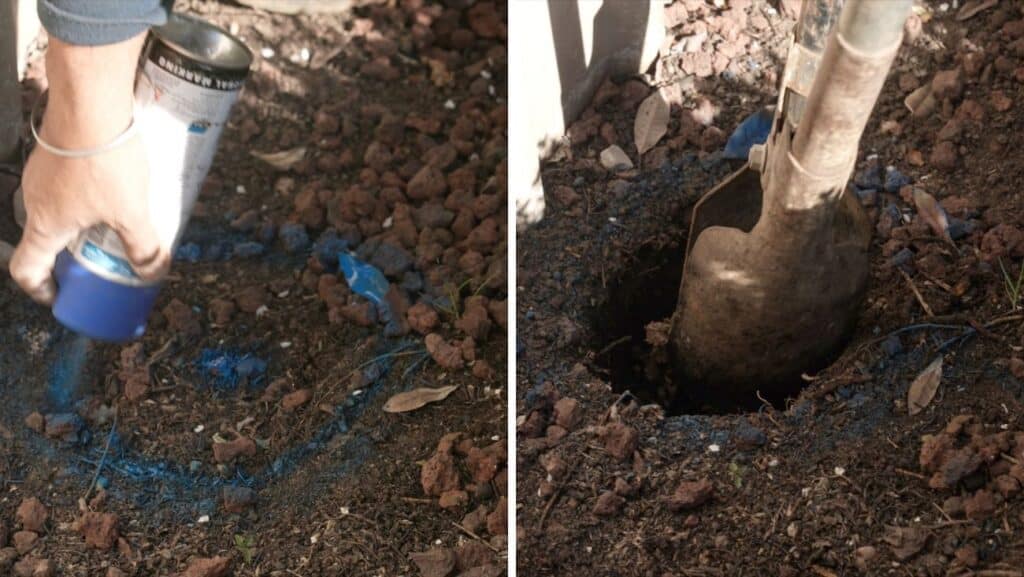

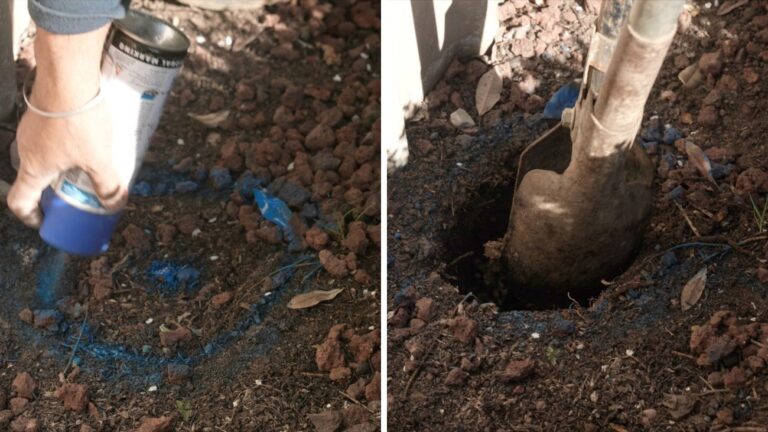

    Measure your positions and dig your holes

    Dig your hole depth according to desired height of screen

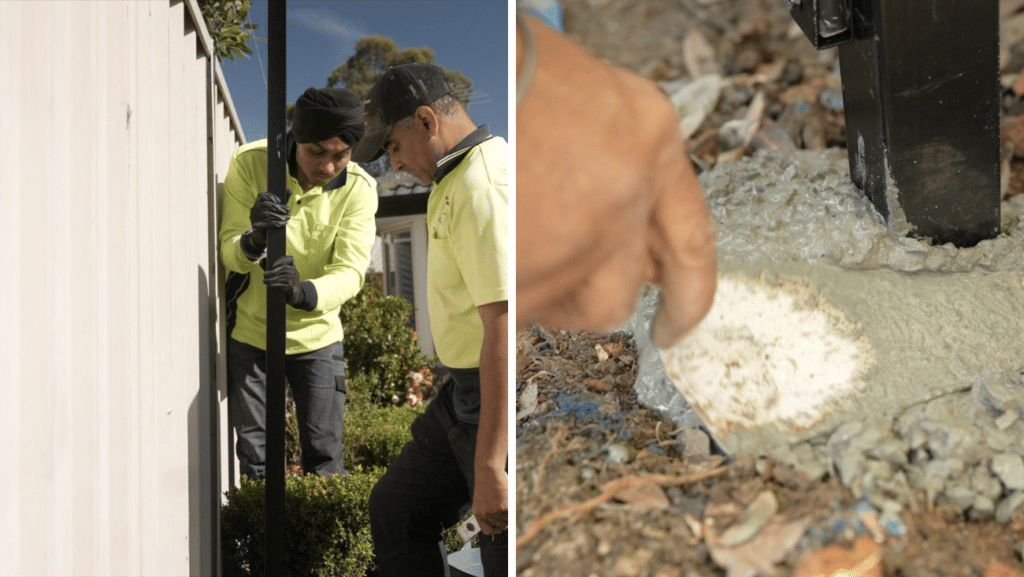

  2. Time to install posts

    Repeat steps ensuring posts are in line with the first post

  3. On-ground Installation

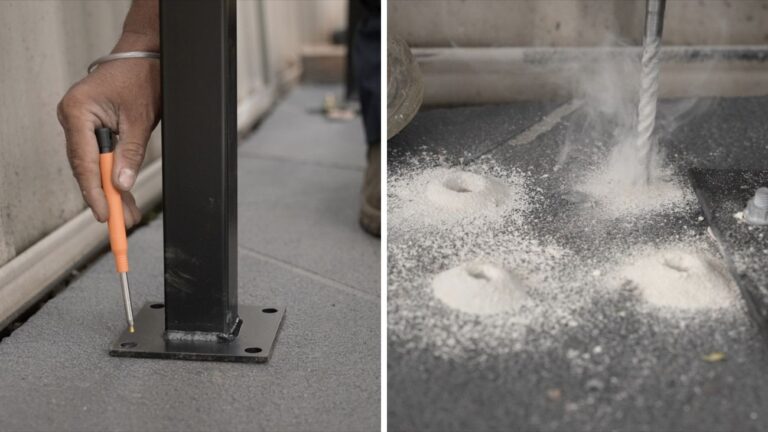

    Mark and drill four (4) holes with a hammer drill

  4. Install posts

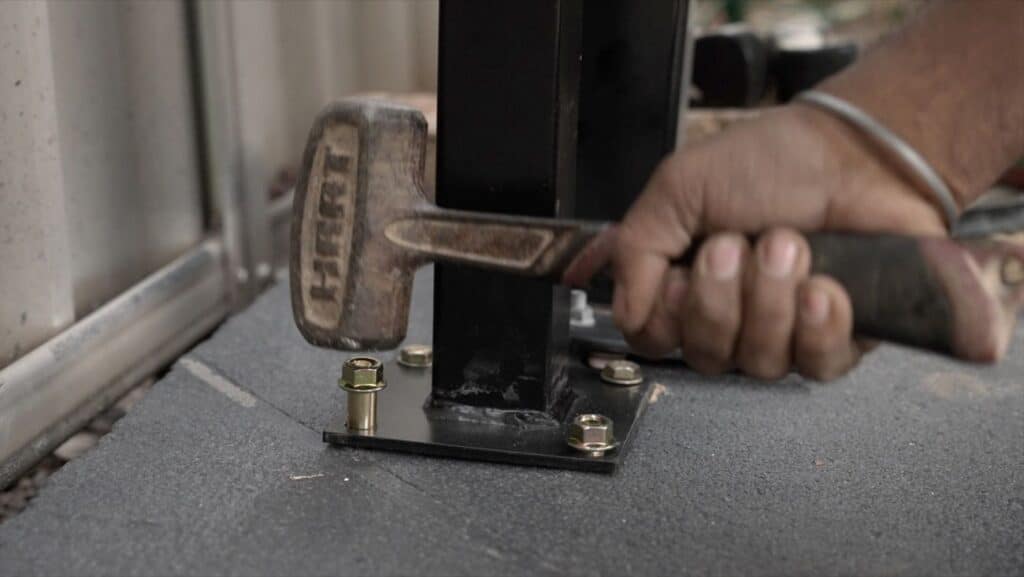

    Fix to concrete with dynabolts

    Make sure posts are level

    For the rest of the posts, measure 910mm to the centre of each post.

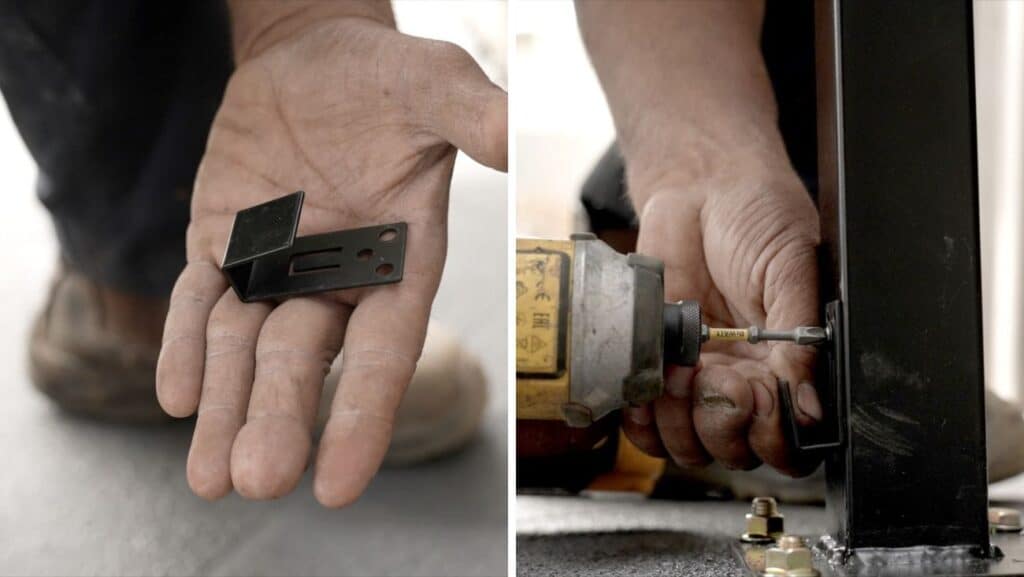

  5. Install bottom brackets

    Use 2 brackets for joining posts and 1 bracket for outside post

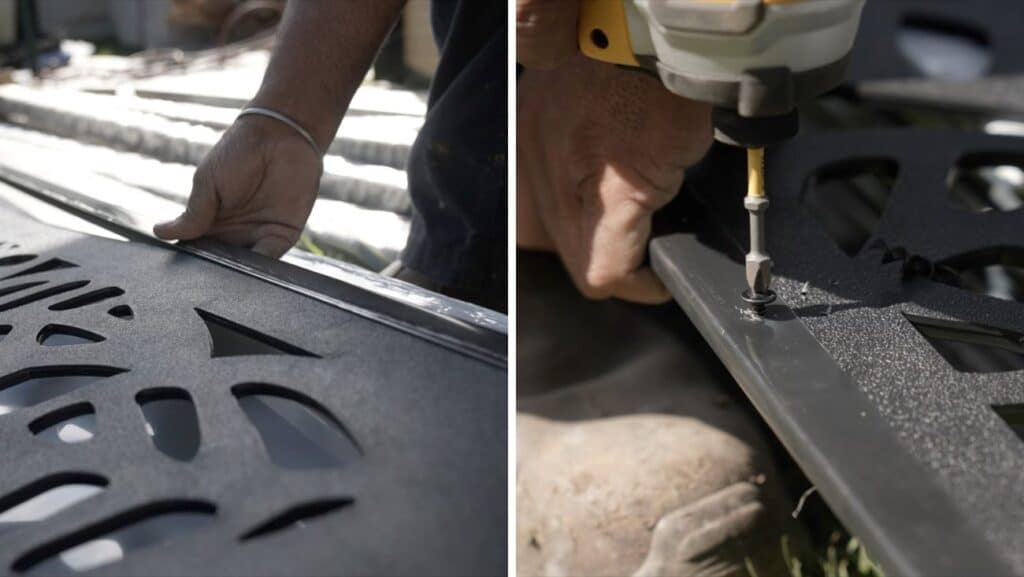

  6. Get your screens ready

    Making the holes bigger on the screen helps the screen to expand and contract in different temperatures.

    Slide frame onto screen with the top and bottom frame overlapping sides, then secure at centre on top and bottom.

    Side frame : pre-drill a 3mm hole 300mm from top and another 600mm from the bottom.  Make the holes bigger on the screen with a 12mm drill bit.

  7. Advanced Installations

    In-ground installations on uneven land, may require cutting screens, frames and posts to the correct size.

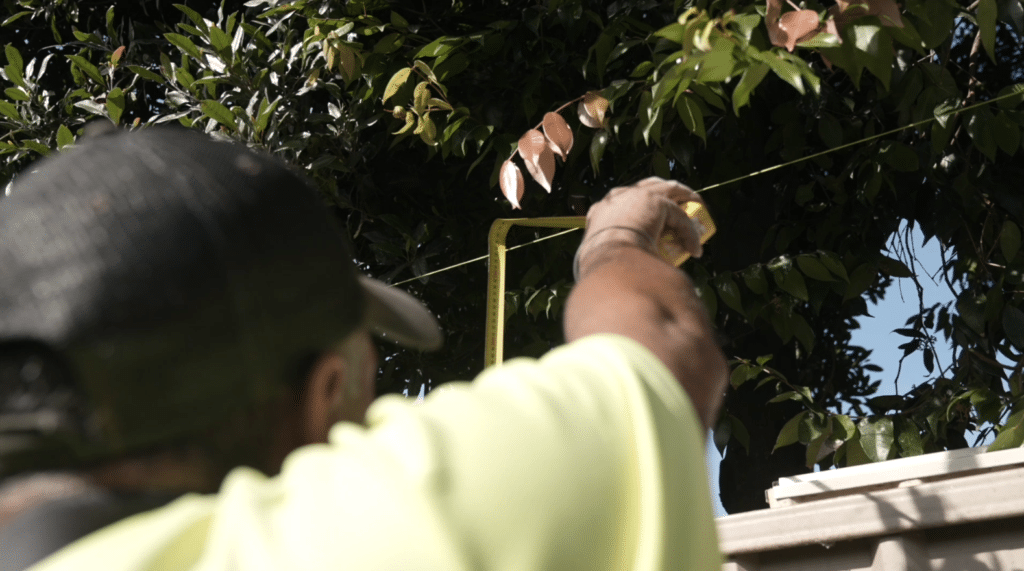

    Use a string line to help you level the top of your posts

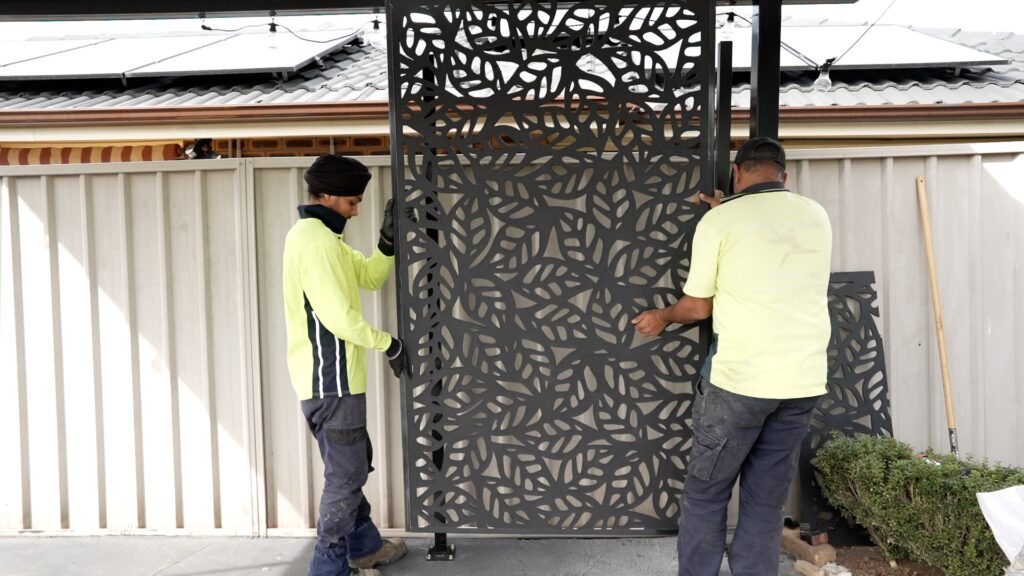

  8. Install Screens

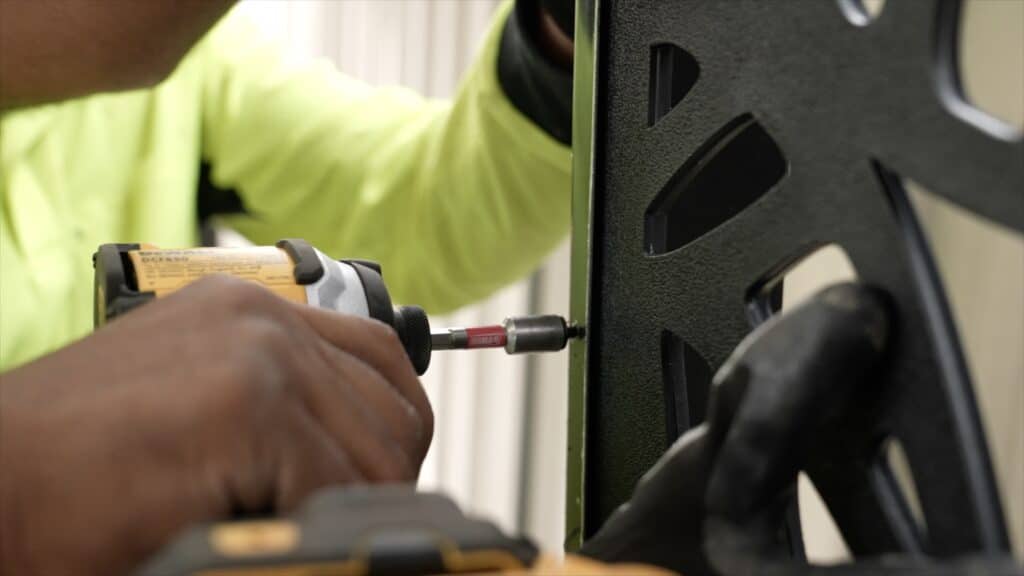

    Screens should sit evenly in the middle of the posts.  Fix screen to posts with supplied screws into pre-drilled holes.

    Make sure screws aren't too tight to allow for expansion & contraction.

    Repeat steps until all screens are attached and secure!





    Enjoy your new elevated outdoor space!
